RH60130系列
通孔直径为60mm (适用于<=60mm)>
*注：如需<60mm>

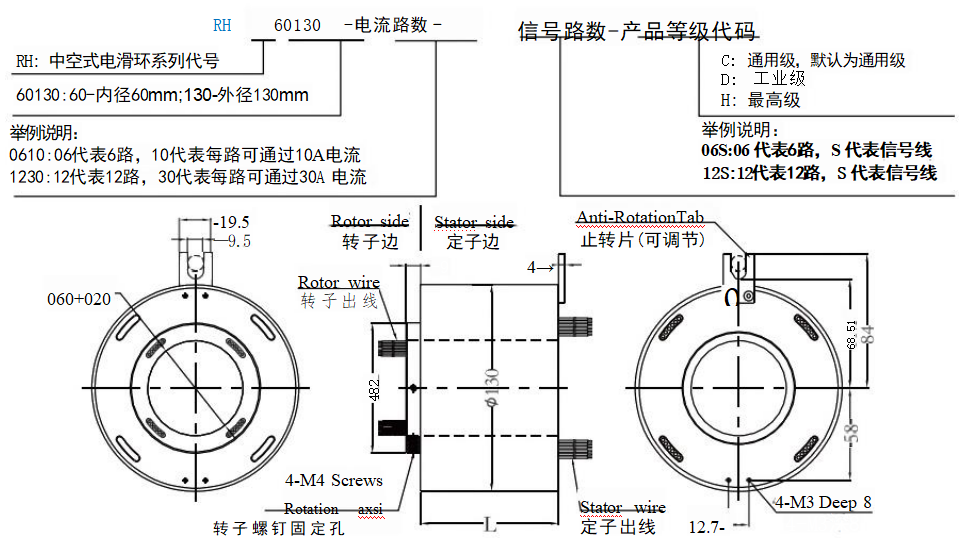

订购型号说明
标准型号选型表
| 型号 | 线路数 | 长度L(mm) | 型号 | 线路数 | 长度L(mm) | ||
| 10A | 信号或5A | 10A | 信号或5A | ||||
| RH60130-02S | 0 | 2 | 36 | RH60130-36S | 0 | 36 | 172 |
| RH60130-0210 | 2 | 0 | 36 | RH60130-0610-30S | 6 | 30 | 172 |
| RH60130-03S | 0 | 3 | 40 | RH60130-1210-S24 | 12 | 24 | 172 |
| RH60130-0310 | 3 | 0 | 40 | RH60130-3610 | 36 | 0 | 172 |
| RH60130-06S | 0 | 6 | 52 | RH60130-42S | 0 | 42 | 196 |
| RH60130-0210-04S | 2 | 4 | 52 | RH60130-0610-36S | 6 | 36 | 196 |
| RH60130-0410-02S | 4 | 2 | 52 | RH60130-1210-30S | 12 | 30 | 196 |
| RH60130-0610 | 6 | 0 | 52 | RH60130-4210 | 42 | 0 | 196 |
| RH60130-12S | 0 | 12 | 76 | RH60130-48S | 0 | 48 | 220 |
| RH60130-0210-10S | 2 | 10 | 76 | RH60130-0610-42S | 6 | 42 | 220 |
| RH60130-0310-09S | 3 | 9 | 76 | RH60130-1210-36S | 12 | 36 | 220 |
| RH60130-0610-06S | 6 | 6 | 76 | RH60130-1810-30S | 18 | 30 | 220 |
| RH60130-0810-04S | 8 | 4 | 76 | RH60130-P2410-24S | 24 | 24 | 220 |
| RH60130-1010-02S | 10 | 2 | 76 | RH60130-4810 | 48 | 0 | 220 |
| RH60130-1210 | 12 | 0 | 76 | RH60130-60S | 0 | 60 | 268 |
| RH60130-18S | 0 | 18 | 100 | RH60130-0610-54S | 6 | 54 | 268 |
| RH60130-0210-16S | 2 | 16 | 100 | RH60130-0910-51S | 9 | 51 | 268 |
| RH60130-0410-14S | 4 | 14 | 100 | RH60130-1210-48S | 12 | 48 | 268 |
| RH60130-0610-12S | 6 | 12 | 100 | RH60130-2410-36S | 24 | 36 | 268 |
| RH60130-0810-10S | 8 | 10 | 100 | RH60130-72S | 0 | 72 | 316 |
| RH60130-1010-08S | 10 | 8 | 100 | RH60130-1210-60S | 12 | 60 | 316 |
| RH60130-1210-06S | 12 | 6 | 100 | RH60130-2410-48S | 24 | 48 | 316 |
| RH60130-1410-04S | 14 | 4 | 100 | RH60130-3610-36S | 36 | 36 | 316 |
| RH60130-1610-02S | 16 | 2 | 100 | RH60130-84S | 0 | 84 | 364 |
| RH60130-24S | 0 | 24 | 124 | RH60130-1210-72S | 12 | 72 | 364 |
| RH60130-0410-20S | 4 | 20 | 124 | RH60130-2410-60S | 24 | 60 | 364 |
| RH60130-0610-18S | 6 | 18 | 124 | RH60130-3610-48S | 36 | 48 | 364 |
| RH60130-1210-12S | 12 | 12 | 124 | RH60130-96S | 0 | 96 | 412 |
| RH60130-1810-06S | 18 | 6 | 124 | RH60130-1210-84S | 12 | 84 | 412 |
| RH60130-2410 | 24 | 0 | 124 | RH60130-2410-72S | 24 | 72 | 412 |
| RH60130-30S | 0 | 30 | 148 | RH60130-3610-60S | 36 | 60 | 412 |
| RH60130-0610-24S | 6 | 24 | 148 | RH60130-4210-54S | 42 | 56 | 412 |
| RH60130-1210-18S | 12 | 18 | 148 | RH60130-108S | 0 | 108 | 460 |
| RH60130-1810-12S | 18 | 12 | 148 | RH60130-1210-96S | 12 | 96 | 460 |
| RH60130-2410-06S | 24 | 6 | 148 | RH60130-2410-84S | 24 | 84 | 460 |
| RH60130-3010 | 30 | 0 | 148 | RH60130-3610-72S | 36 | 72 | 460 |
*注 ：N个10A电流环并起来可作为1路N*10A电流使用；比如：2环10A并起来可以作为1路20A使用， 10A 和信号(5A) 可以任意组合，详细请咨询，可在标准产品上定制
