转子法兰安装，通孔直径为12.7mm (适用于<=12.7mm)>
*注：如需<12.7mm>

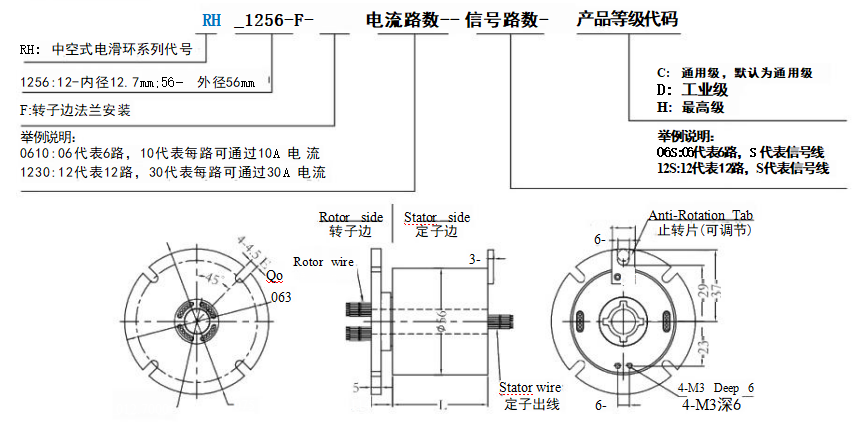

订购型号说明
RH1256F系列过孔式滑环选型表
| 型号 | 线路数 | 长度L(mm) | 型号 | 线路数 | |||
| 10A | 信号或0~5A | 10A | 信号或0~5A | ||||
| RH1256F-02S | 0 | 2 | 27 | RH1256F-1010-08S | 10 | 8 | 71.5 |
| RH1256F-0210 | 2 | 0 | 27 | RH1256F-1210-06S | 12 | 6 | 71.5 |
| RH1256F-03S | 0 | 3 | 30 | RH1256F-1410-04S | 14 | 4 | 71.5 |
| RH1256F-0310 | 3 | 0 | 30 | RH1256F-1610-02S | 16 | 2 | 71.5 |
| RH1256F-06S | 0 | 6 | 38 | RH1256F-24S | 0 | 24 | 88.5 |
| RH1256F-0210-04S | 2 | 4 | 38 | RH1256F-0410-20S | 4 | 20 | 88.5 |
| RH1256F-0410-02S | 4 | 2 | 38 | RH1256F-0610-18S | 6 | 18 | 88.5 |
| RH1256F-0610 | 6 | 0 | 38 | RH1256F-1210-12S | 12 | 12 | 88.5 |
| RH1256F-12S | 0 | 12 | 55 | RH1256F-1810-06S | 18 | 6 | 88.5 |
| RH1256F-0210-10S | 2 | 10 | 55 | RH1256F-2410 | 24 | 0 | 88.5 |
| RH1256F-0310-09S | 3 | 9 | 55 | RH1256F-30S | 0 | 30 | 104 |
| RH1256F-0610-06S | 6 | 6 | 55 | RH1256F-0210-28S | 2 | 28 | 104 |
| RH1256F-0810-04S | 8 | 4 | 55 | RH1256F-0410-26S | 4 | 26 | 104 |
| RH1256F-1010-02S | 10 | 2 | 55 | RH1256F-0610-24S | 6 | 24 | 104 |
| RH1256F-1210 | 12 | 0 | 55 | RH1256F-36S | 0 | 36 | 122 |
| RH1256F-18S | 0 | 18 | 71.5 | RH1256F-0410-32S | 4 | 32 | 122 |
| RH1256F-0210-16S | 2 | 16 | 71.5 | RH1256F-0610-30S | 6 | 30 | 122 |
| RH1256F-0410-14S | 4 | 14 | 71.5 | RH1256F-42S | 0 | 42 | 140 |
| RH1256F-0610-12S | 6 | 12 | 71.5 | RH1256F-0410-38S | 4 | 38 | 140 |
| RH1256F-0810-10S | 8 | 10 | 71.5 | RH1256F-48S | 0 | 48 | 156 |
*注 ：N个10A电流环并起来可作为1路N*10A电流使用；比如：2环10A并起来可以作为1路20A使用，10A 和信号(5A) 可以任意组合，详细请发询盘，可在标准产品上定制
